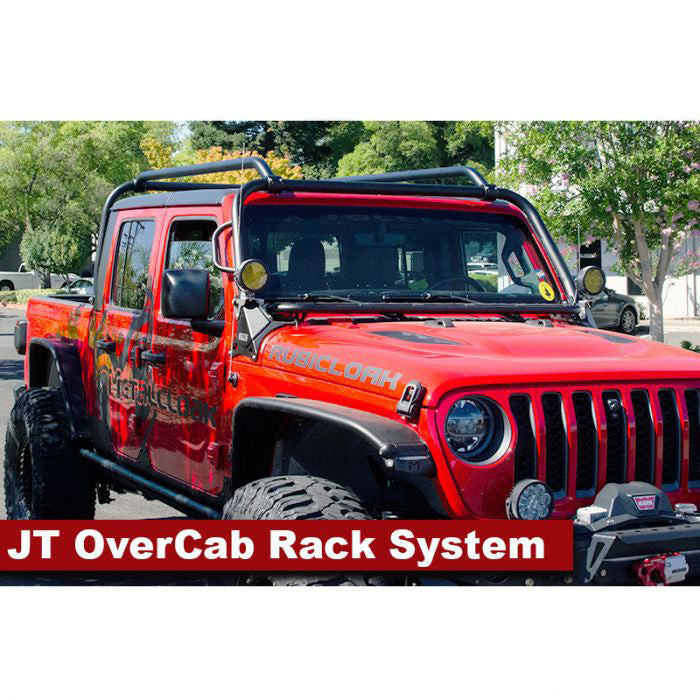

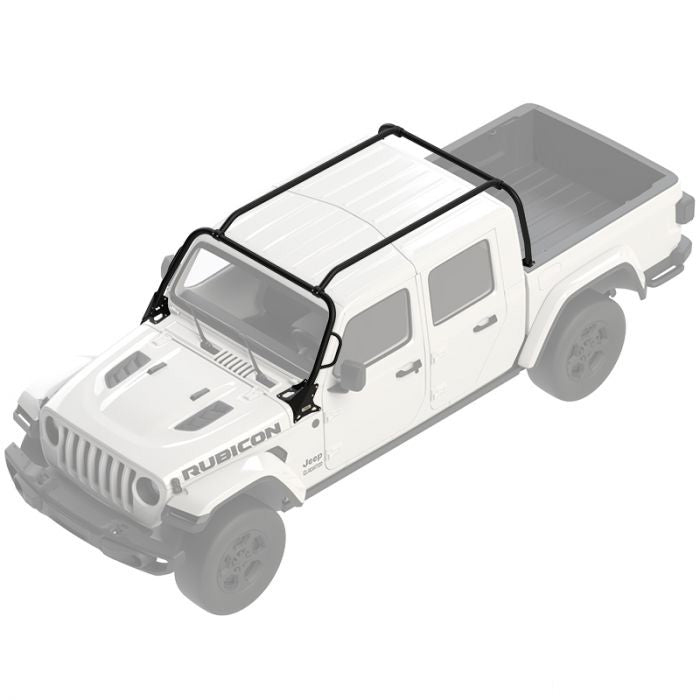

The ARS OverCab system is the perfect tool to give you that extra cargo platform, keeping the bed free for mountain bikes, camping gear, building materials, or other daily uses. It builds on a unique floating foundation that separates and distributes weight to the cab and to the bed maximizing structure and support. Utilizing a matrix of 3/16" steel pier-plates, base anchor footings, and 2" diameter steel columns, our system interconnects a framework that allow for "seismic" forces to be handled readily with its unique mechanical advantages.
ARS is the only rack that features a "load bearing" front hoop without the need for additional support; this strength is the bedrock that allows our rack systems to withstand fore and aft thrust, side load forces, and prevents horizontal racking (the twisting/flexing out of a rigid or supportive state). The front hoop columns are attached with 3/16" steel pier-plates that connect to 16 strong mounting points along with 2 additional fasteners at the front assembly of the Jeep body, then the pier plates are discretely covered with the factory cowl for a clean OE look.
The rear hoop columns are attached with our 3/16" steel base anchors and flexural footings, that create an understructure connecting the bed of the Jeep to the hoop for the strongest attachment point. The flexural footings coupled to our 2” OD steel support columns through 2-part urethane bushings, providing flexural rigidity between the bed and cab mounts that allow the front and rear foundations to work in unison to support the cargo structure.
Roof trusses are made from strong 2” OD steel tube and are attached with CNC billet clamps to the fore and aft hoop columns. The roof trusses have been engineered with forward slopes to reduce outward forces on the cab mounted hoop columns; the rear facing billet clamps attach directly to the bed mounted rear hoop columns, where any thrust forces are dealt with utilizing our base anchored/flexural footings. The roof trusses are positioned low, as bowing is not an issue with the colossal strength, ensuring the lowest center of gravity possible when at capacity.
Product Features
- Allows for Freedom Top Removal
- Bolts Directly to Factory Locations
- Heavy Duty 2" Tubular Exo-Skeleton Rack System
- 300lb Dynamic Weight and 600lb Static Load
- One Piece Front Hoop Design
- Front Hoop Weld on Grab Handles
- Front Steel Pier Plates
- Integrated Fastener System
- Rear Steel Flexural Footings
- Two Piece NVH Hi-Durometer Urethane Bushings
- Industrial Grade Corrosion Resistant Hardware
- Protection for Windshield Assembly
- Protection for the Rear Corners
- Low Profile Design
- Finished in Black Texture Powdercoat
Included in Kit
- Front Hoop
- Pier Plates
- Roof Trusses
- Rear Hoop
- Flexural Footings
- NVH Urethane Bushing
- All Required Hardware
